Future Clock Project






It will have more functions than the hospice clock, and a compensation work for the Sun and Moon, the idea is to build two clocks next to each other with one driving clockwork, the second clock will show the movement of the planets

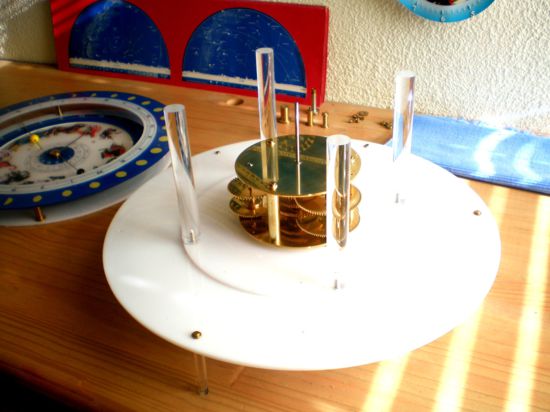

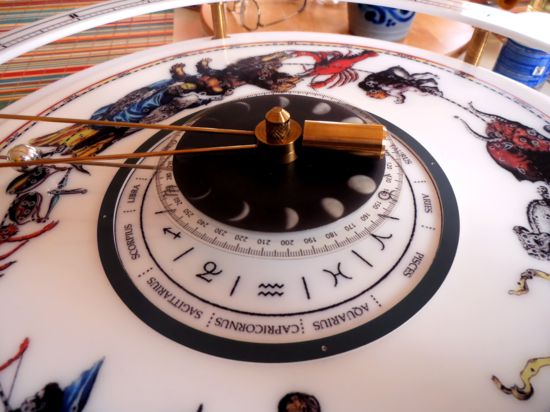

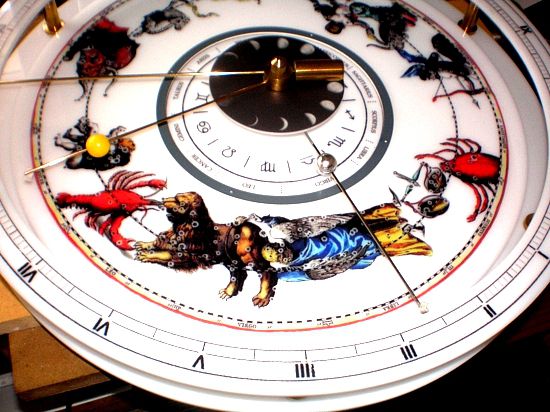

The Sun (real) will move in the inner zodiac ring, the Moon (real) in the outer.

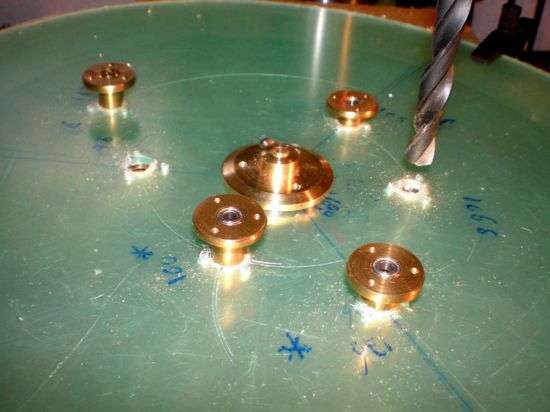

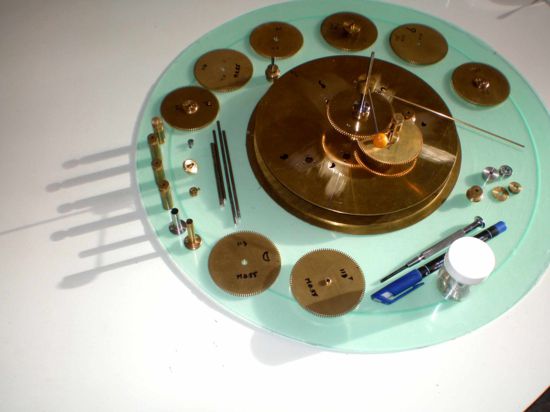

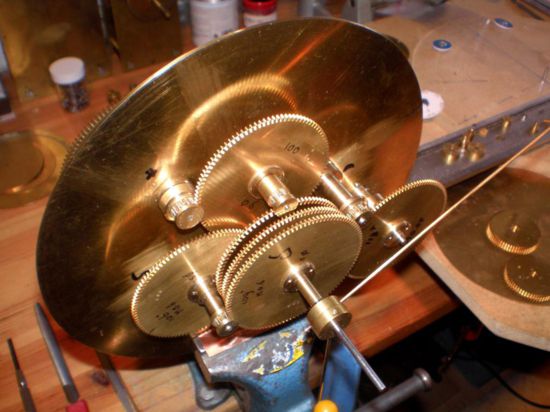

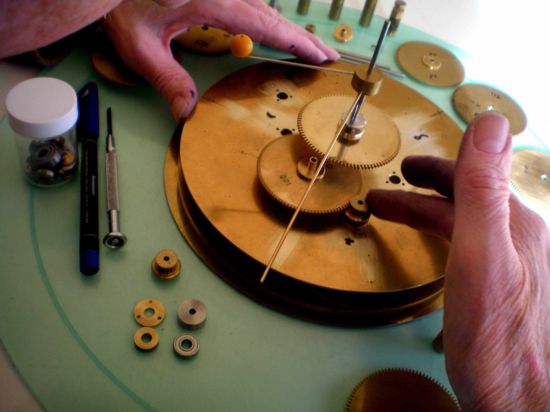

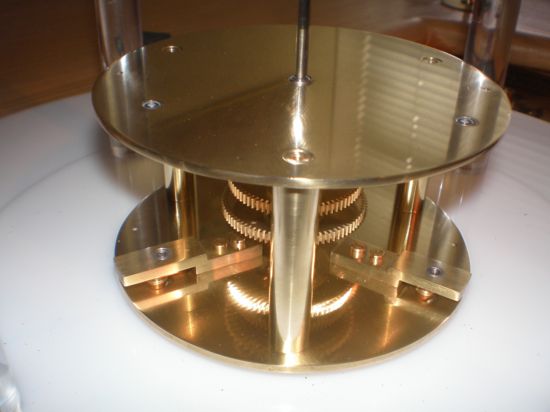

The epicyclic train
(The wheels and pinions are not at the right place yet, my first job to do)

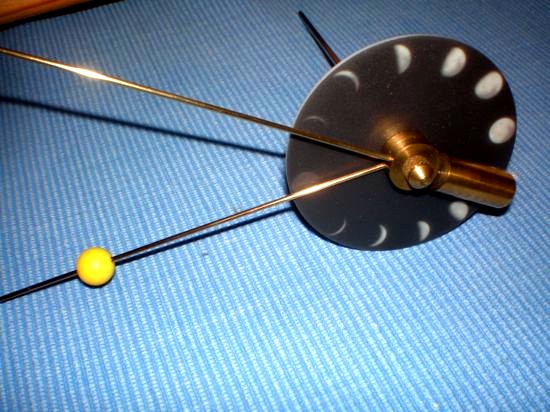

 The moon turns in a synodic month showing the phases





Do I understand my own Drawings?
(Just some first ideas)

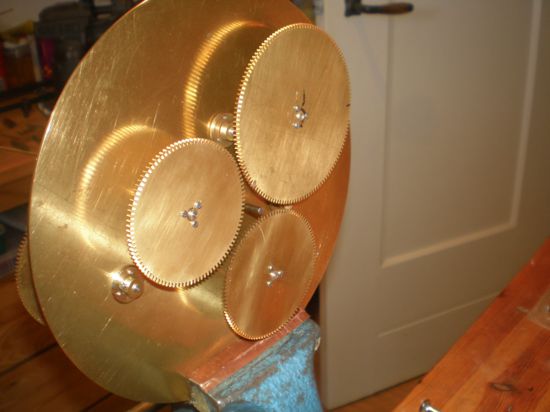

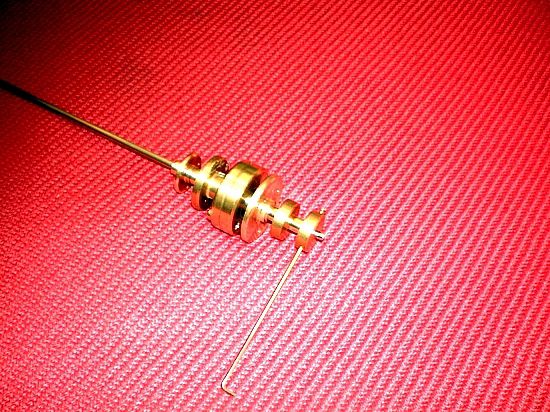

Eccentric wheel for (almost) real Moon
(The Moon has several inequalities, the major is the anomaly, just over 6 degrees, I hope this will do the job)




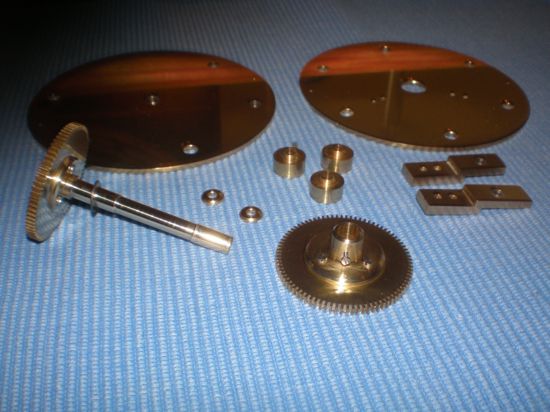

Wheel cutting

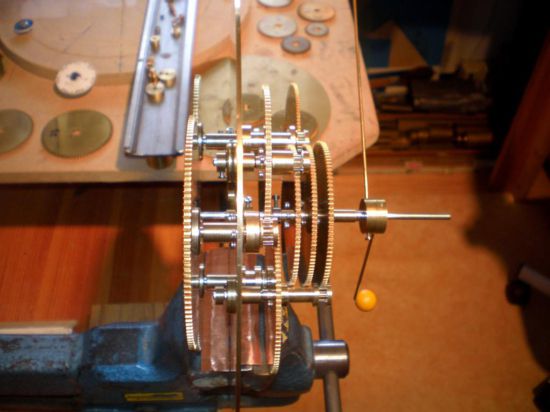

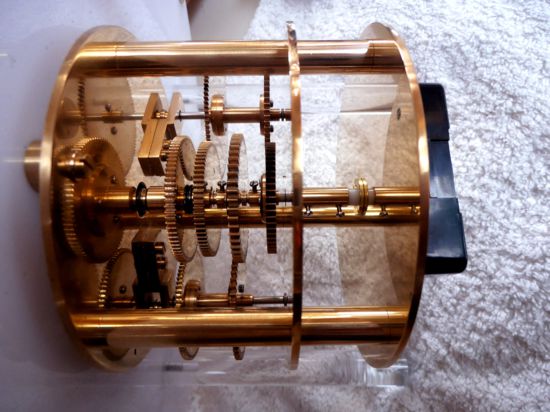

Differential for the Moon





Compensation for the Sun
(Also not in place yet, a pin follows a disc in a special shape that turns once a year)




Testing the compensation

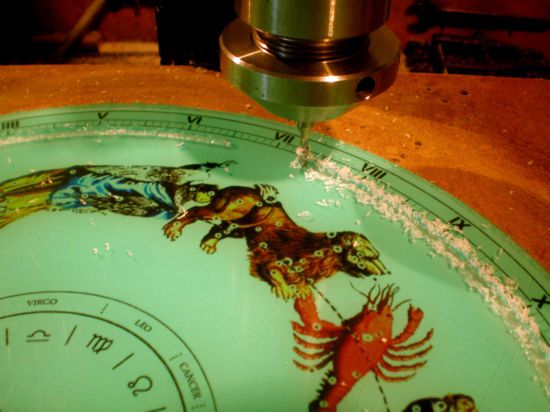

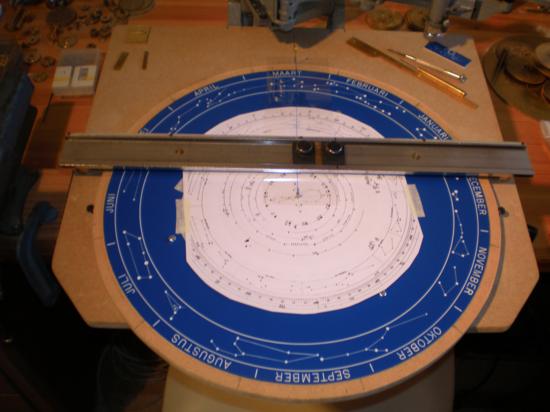

 Engraving the zodiac images
